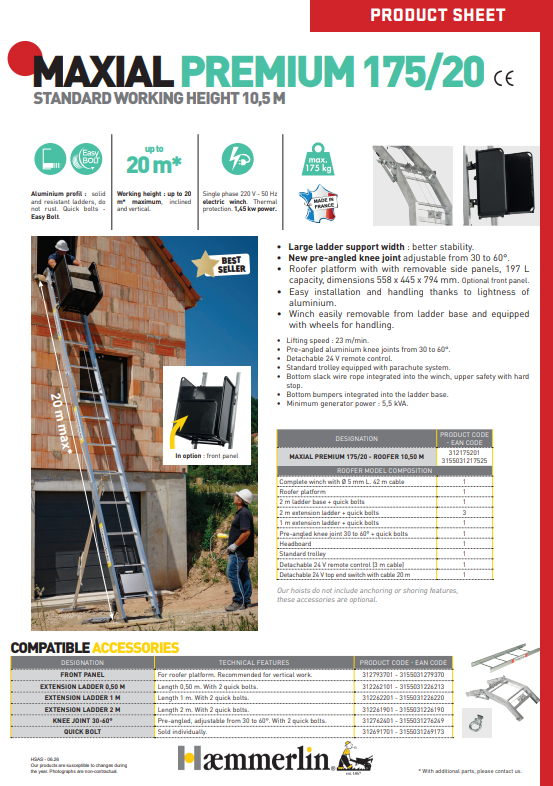

MAXIAL PREMIUM 175/20 HOIST

The Maxial Premium 175/20 is a professional hoist structure designed for intensive construction site use. Built from lightweight and durable aluminum, it offers increased lifting capacity and excellent stability while remaining easy to install and handle.

• Increased capacity: 175 kg payload, suitable for heavy and bulky materials.

• Working height: up to 20 m inclined or vertical, depending on your requirements (extensions available).

• Aluminum ladder sections: robust, lightweight, corrosion-resistant interlocking structure with a wide support base for enhanced stability.

• Adjustable pre-bent knee joint: aluminum construction, adjustable from 30° to 60° to suit all jobsite configurations.

• High-performance winch: single-phase 220 V / 50 Hz electric motor, 1.1 kW power, lifting speed of 22 m/min, easily removable and fitted with wheels for transport.

• Integrated safety features: standard carriage with parachute safety system, lower slack-cable safety device, and upper limit switch safety.

• Practicality: lower stops integrated into the base ladder section, detachable 24 V remote control, and quick assembly using the Easy Bolt tool-free system.

• Compatibility: operates with a generator of at least 5.5 kVA power.

With a weight of 140 kg, the Maxial Premium 175/20 remains easy to handle and provides an excellent balance between strength and lightweight construction. Compatible with a wide range of accessories (platforms, side panels, etc.), it can be perfectly adapted to your jobsite requirements.
